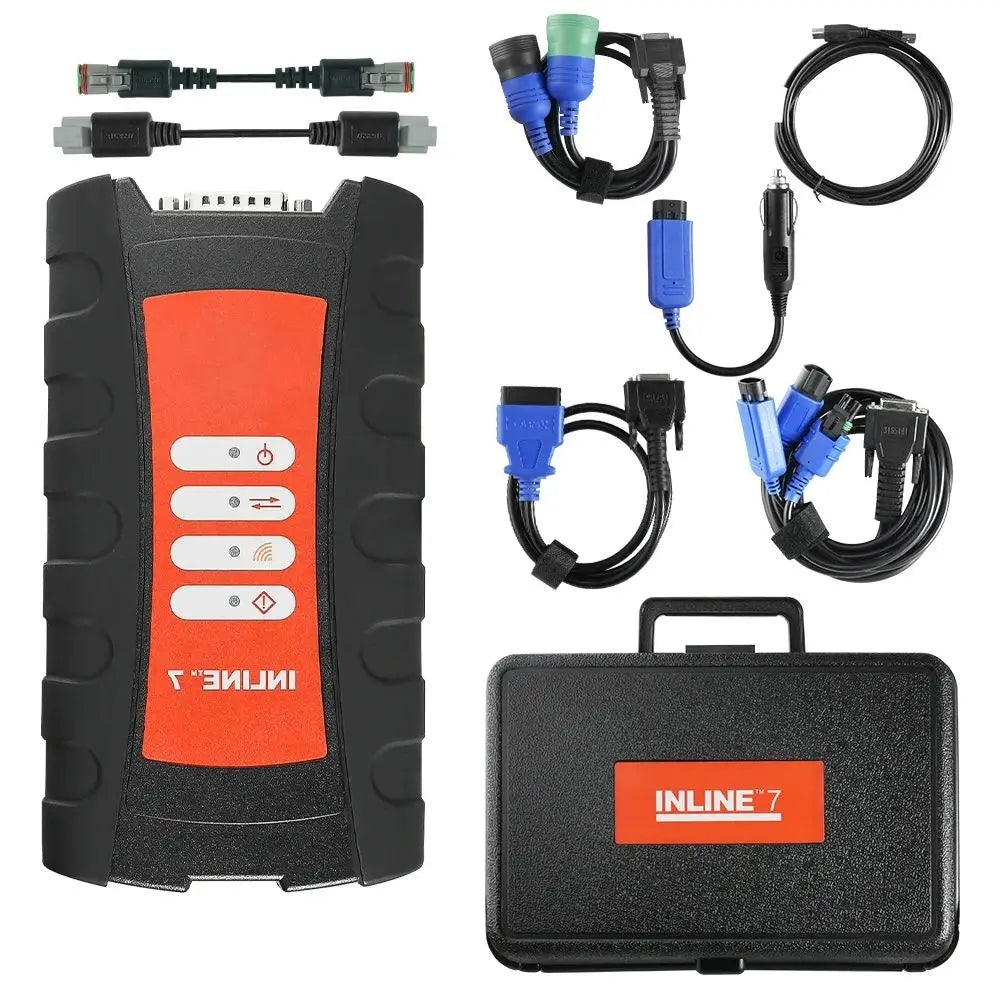

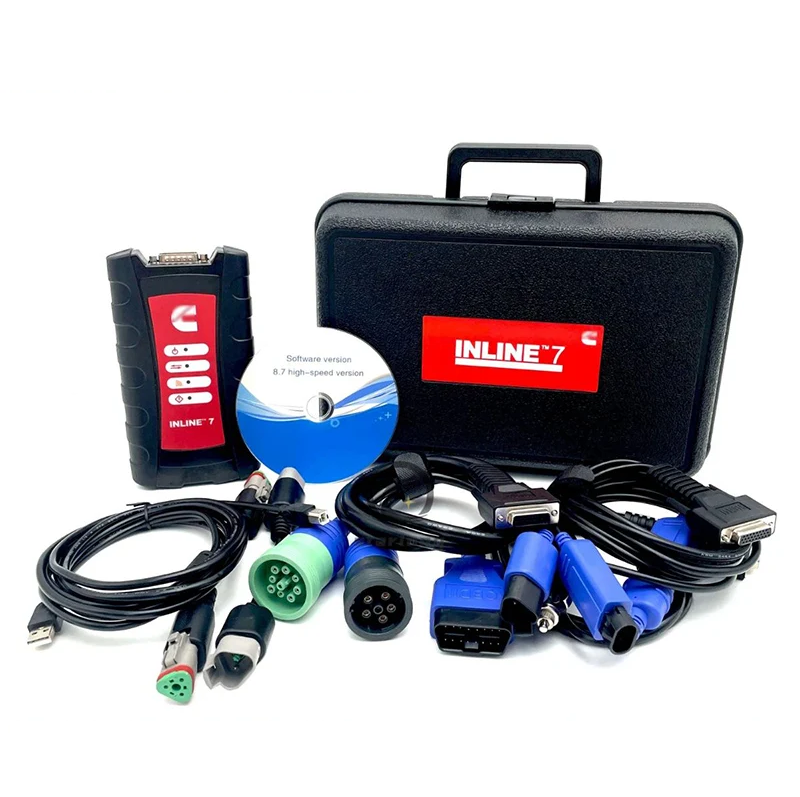

Cummins Inline 7 Diagnostic Interface | WiFi + Bluetooth + 3 Simultaneous CAN Channels

What is the Cummins Inline 7 — and what makes it different from the Inline 6

The Cummins Inline 7 is the direct evolution of the Inline 6: Cummins' official diagnostic interface for heavy-duty engines, featuring more powerful hardware, wireless connectivity, and expanded support for multiple electronic systems beyond the Cummins engine itself.

Feature	Inline 6	Inline 7
ECU up/download speed	Normal	Significantly faster
Connectivity	USB only	WiFi + Bluetooth + USB
Simultaneous CAN channels	Limited	3 simultaneous CAN channels
Additional software supported	—	Allison DOC, Eaton ServiceRanger, Detroit Diesel, WABCO, Bendix, Freightliner
Physical robustness	Standard	Reinforced cables + resistant case

For workshops that perform full truck diagnostics — engine, automatic transmission, brakes — the Inline 7 connects and reads all these systems in a single tool.

ECM Tech Center sells and provides technical support for the Cummins Inline 7. Contact us before purchasing to confirm compatibility with your engine model and version.

What you can do with Cummins Inline 7 + INSITE 8.7

Function	Description
Fault code reading	Identifies and interprets active and historical DTCs from all Cummins modules
Real-time monitoring	Temperature, pressure, rotation, consumption, injection — live
Parameter calibration	Adjusts engine parameters according to Cummins specifications
ECM reprogramming	Updates and reconfigures replacement control modules
ECU data download and upload	Faster than Inline 6 — processes large volumes of data
Diagnostic via WiFi/Bluetooth	Connects without a cable — greater mobility on the workbench and in the field
3 simultaneous CAN channels	Parallel diagnosis of engine, transmission, and brake system
Factory settings	Deep parameters that multi-brand tools cannot reach

Software compatibility via RP1210

Software	System diagnosed
Cummins INSITE 8.7	Cummins Engine (included in the package)
Allison DOC for Fleets	Allison Automatic Transmissions
Eaton ServiceRanger	Eaton Automated Manual Transmissions
Detroit Diesel Diagnostic Link	Detroit Diesel Engines
WABCO Toolbox	WABCO ABS/EBS Brake Systems
Bendix ACom	Bendix Brake Systems
Freightliner ServiceLink	Complete Freightliner System

When to choose Inline 7 instead of Inline 6

Choose the Inline 7 if you need wireless diagnosis (WiFi/Bluetooth), service trucks with Allison transmission, Eaton gearbox or WABCO/Bendix brakes and want a single tool for everything, work with ECUs with large data volumes and need up/download speed, or want the most complete system in the Cummins line. Choose the Inline 6 if you use INSITE exclusively, diagnosis is always via USB cable, and budget is the main factor.

Technical Specifications

Field	Detail
Model	Cummins Inline 7
Main software	Cummins INSITE 8.7 (included)
Protocols	SAE J1708/J1587, SAE J1939, CAN — RP1210 standard
Connectivity	USB + WiFi + Bluetooth
Simultaneous CAN channels	3
Operating system	Windows 7, 8 or 10
Warranty	12 months (hardware + software)
Return policy	30 days
Condition	New
